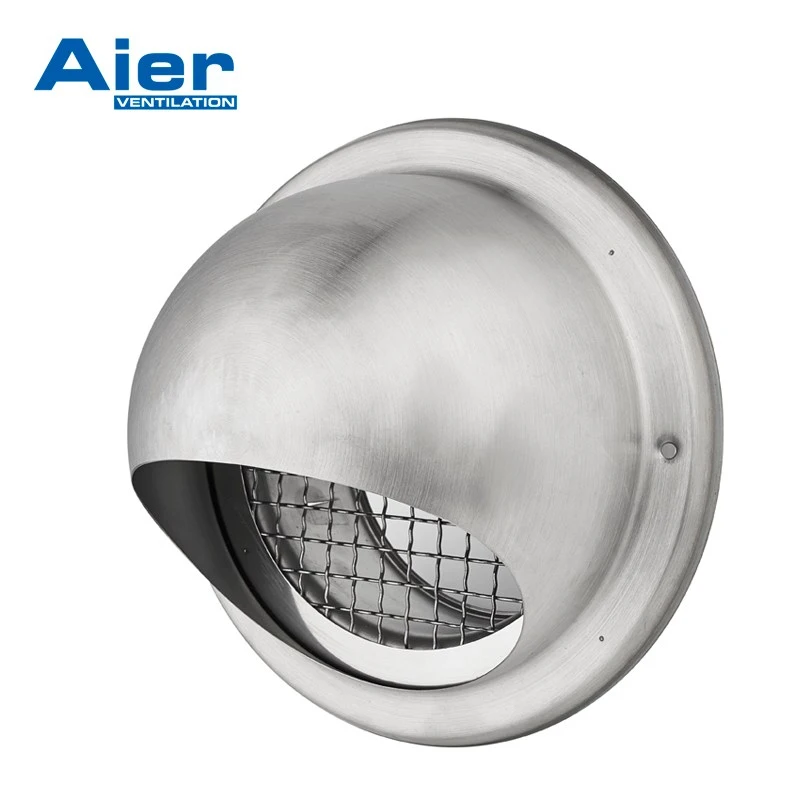

Stainless steel louver (B type) for air intake and exhaust.
Material: stainless steel 304.
Finish: brushed stainless steel.
Construction: hood, bird mesh & fixed mounting connector with clips.
Accessories: rubber gasket + drip nose + mounting screws.

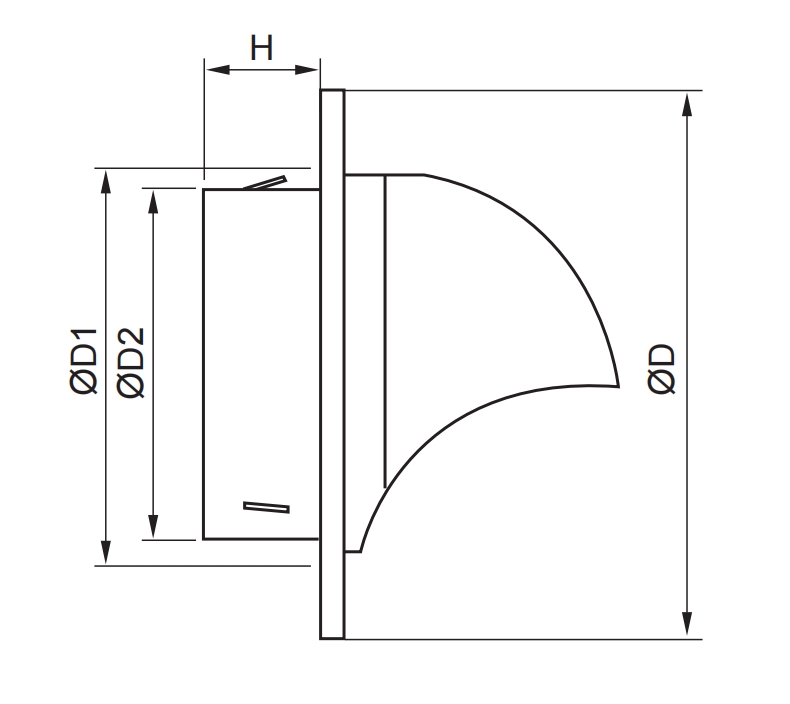

| Item code | ØD(mm) | ØD1(mm) | ØD2(mm) | H(mm) |
| SSL-B80 | 148 | 80 | 75 | 40 |
| SSL-B100 | 148 | 100 | 95 | 48 |
| SSL-B125 | 188 | 125 | 120 | 48 |
| SSL-B150 | 210 | 150 | 145 | 56 |
| SSL-B160 | 210 | 160 | 155 | 61 |
| SSL-B180 | 272 | 180 | 175 | 66 |
| SSL-B200 | 272 | 200 | 195 | 70 |
| SSL-B250 | 285 | 250 | 245 | 70 |
