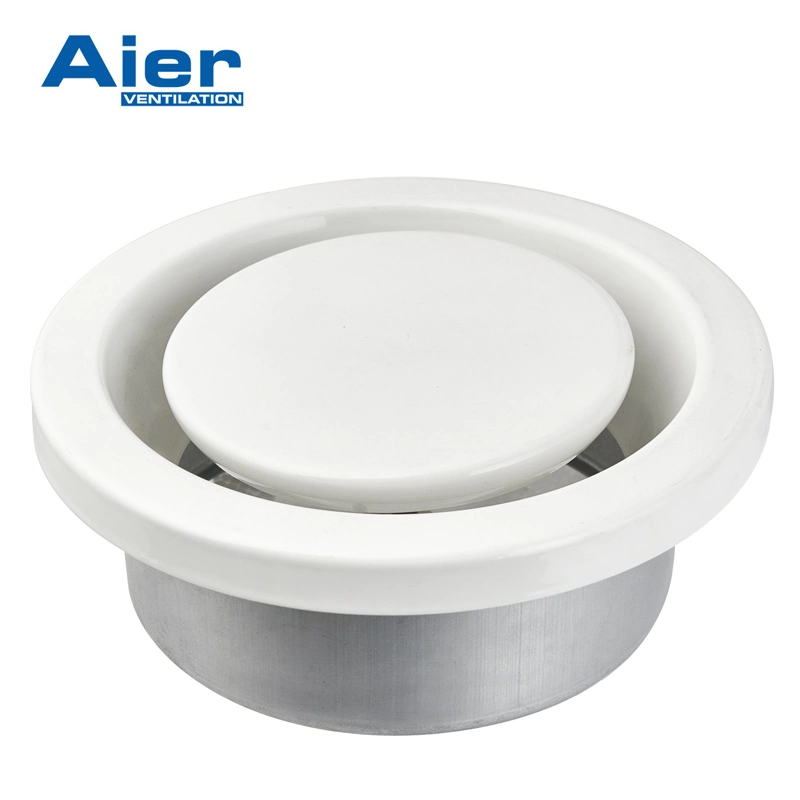

Material: valve body made of SPCC, mounting ring made of galvanized steel.
Finish: RAL9010, RAL9016 or RAL 9003 as per customer request.
The valve body is equipped with a cellular plastic gasket to form an air-tight seal.
The air flow is adjusted by rotating the control disc.

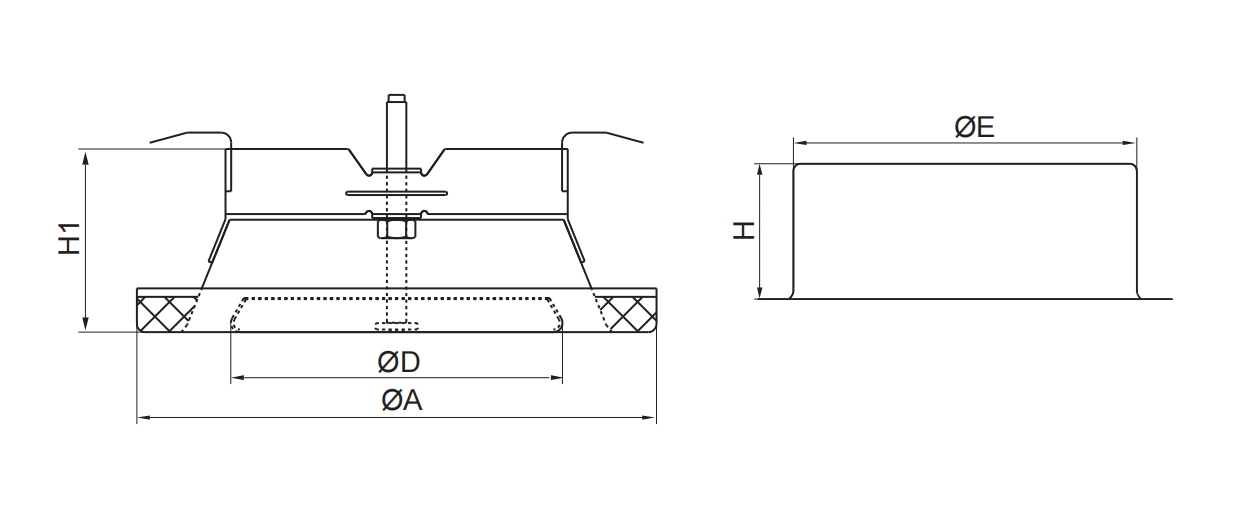

| Item code | ØA(mm) | H(mm) | H1(mm) | ØD(mm) | ØE(mm) |
| AVE 80 | 79 | 50 | 56 | 60 | 108 |
| AVE 100 | 99 | 50 | 56 | 79 | 135 |
| AVE 125 | 124 | 50 | 56 | 102 | 160 |
| AVE 150 | 149 | 50 | 56 | 135 | 190 |
| AVE 160 | 159 | 50 | 56 | 140 | 195 |
| AVE 200 | 199 | 50 | 56 | 175 | 230 |
