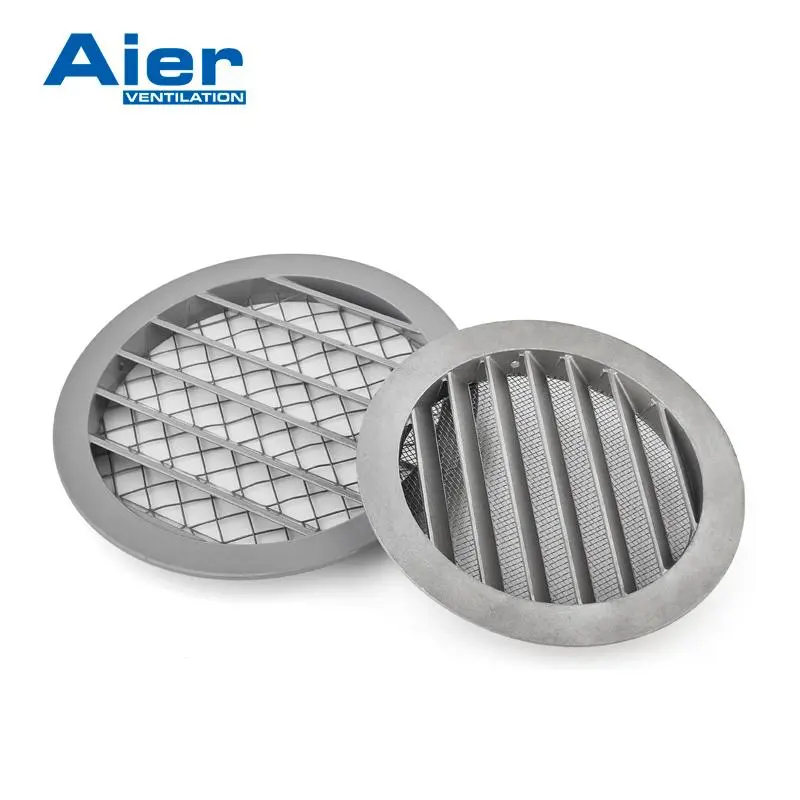

Casting type aluminum external louver for air supply and exhaust
Material: aluminum.
Finish: natural aluminum finish or painted with RAL9006 (better corrosion resistance).
Supplied with insect mesh (small hole) or bird mesh (big hole), as per customer request.

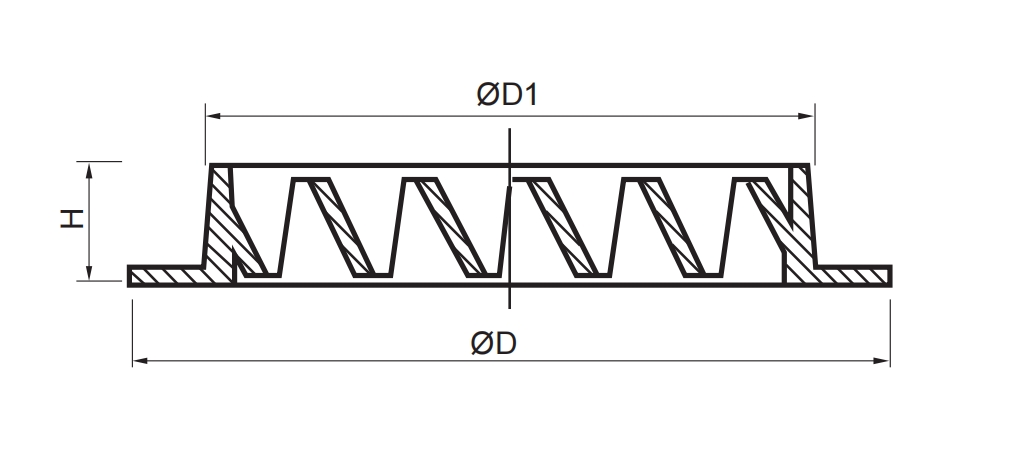

| Item code | ØD(mm) | ØD1(mm) | H(mm) |
| CAEL-80 | 79 | 100 | 19 |
| CAEL-100 | 99 | 124 | 19 |
| CAEL-125 | 124 | 150 | 19 |
| CAEL-150 | 149 | 179 | 17 |
| CAEL-160 | 159 | 181 | 18 |
| CAEL-200 | 199 | 233 | 20 |
| CAEL-250 | 249 | 275 | 20 |
| CAEL-315 | 314 | 345 | 21 |
| CAEL-400 | 399 | 439 | 41 |
